4145 Steel Mechanical Property Enhancement

Project Overview

This project was a deep-dive investigation into the 4145 steel grade to enhance its mechanical properties and ensure consistent performance for valued customers. Through advanced metallurgical analysis, the investigation identified the root cause of variability in yield strength and developed clear, actionable recommendations for process optimization.

The Challenge

The investigation was initiated to address a technical challenge where some samples of 4145 steel showed yield strength measurements just below the required 135 ksi minimum.A specific sample was selected for a comprehensive analysis to understand the underlying factors. The measured yield strength for this sample was 134 ksi below the surface and 125 ksi at the mid-radius.

Investigation & Analysis

A detailed analysis was performed on the sample, combining microstructural evaluation with chemical analysis to build a complete picture.

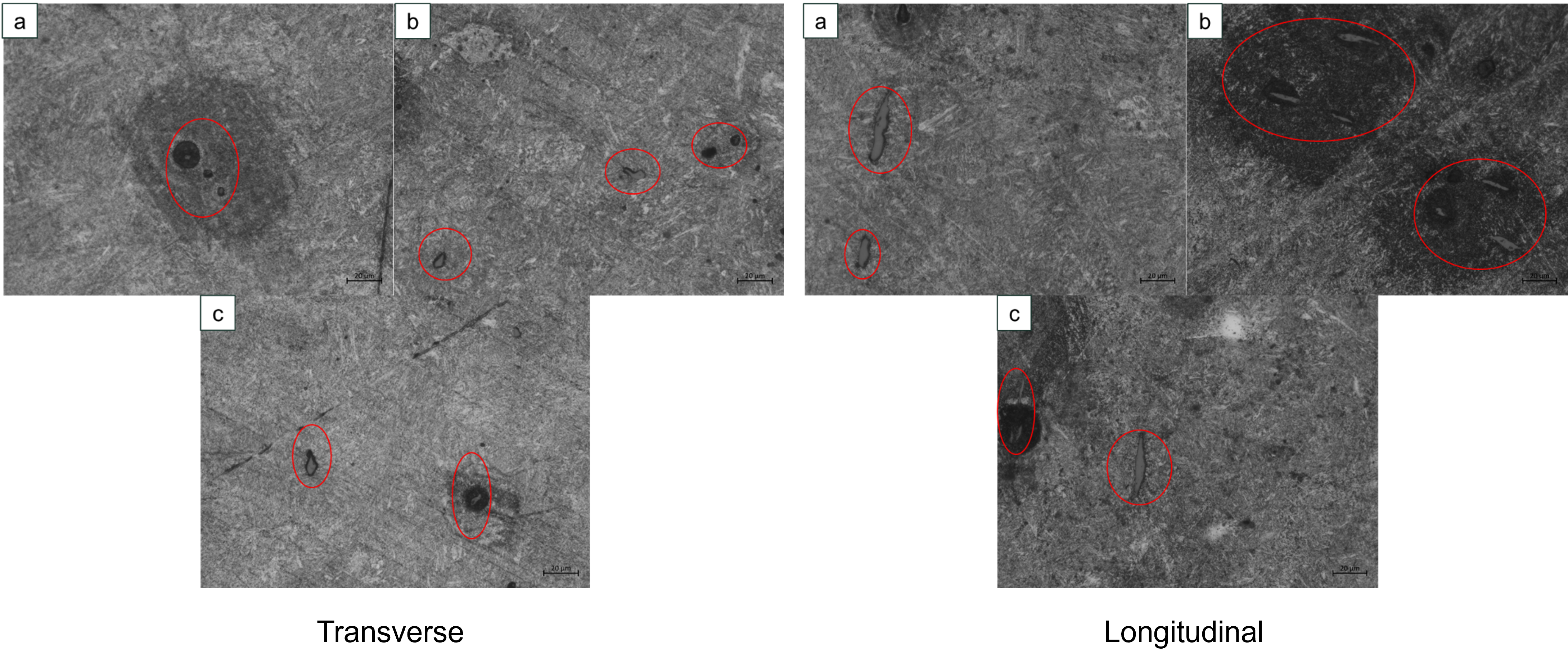

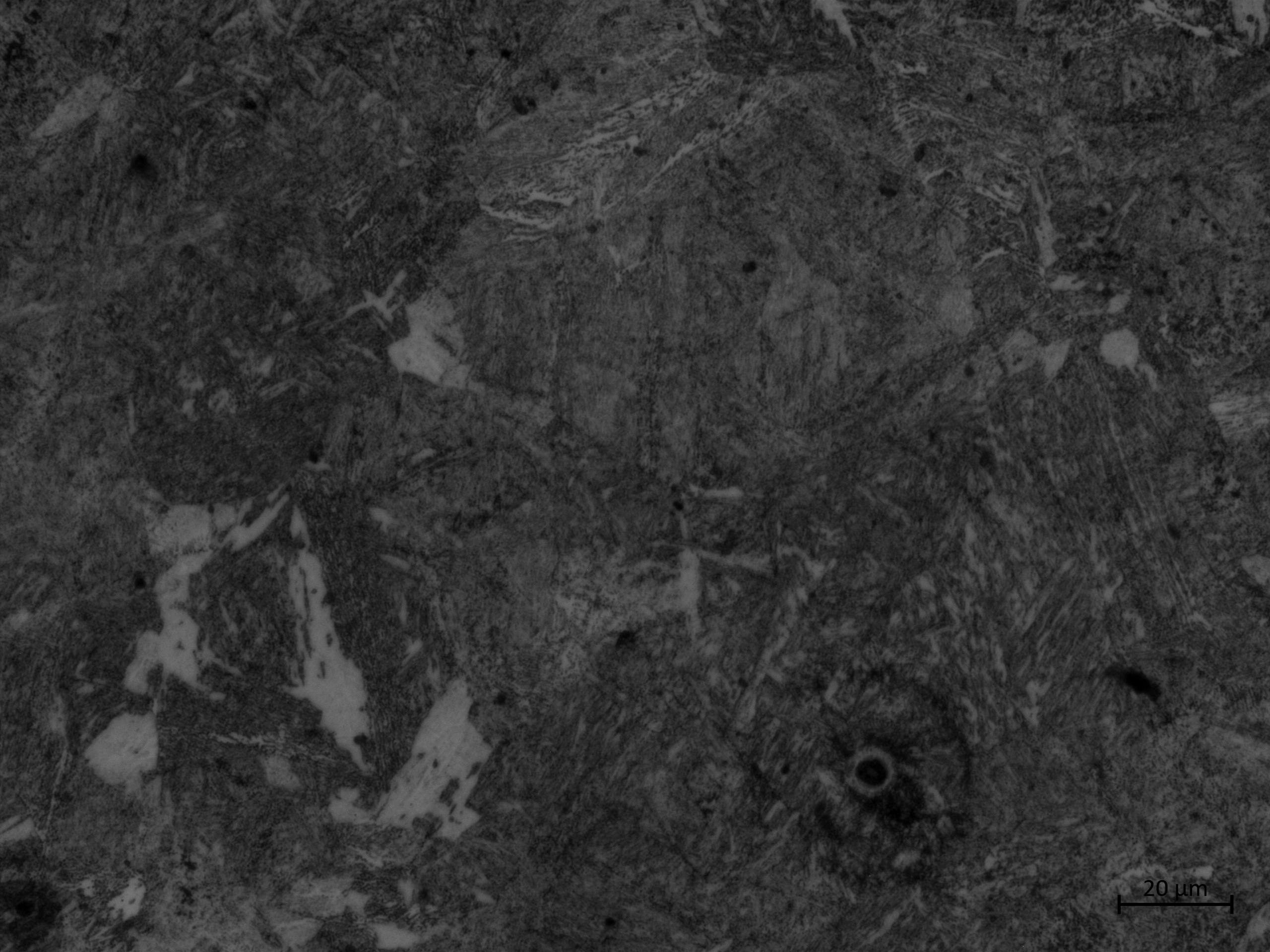

• Microstructural Analysis: Using optical microscopy on both longitudinal and transverse sections, the analysis identified numerous manganese sulfide (MnS) stringer inclusions as a primary feature. These inclusions can disrupt the steel's internal structure and impact its mechanical performance.
• Chemical Analysis: A spectral analysis of the material's chemistry yielded two key insights:
  • Sulfur content was measured at 0.0148%, near the upper specification limit, which can contribute to MnS stringer formation.
  • A trace amount of unintended calcium (0.00029%) was detected, which appeared to have influenced the shape of the sulfide inclusions.



Proposed Solutions & Recommendations

Based on the comprehensive analysis, the following data-driven recommendations were proposed to improve steel cleanliness, enhance yield strength, and ensure greater product consistency:

• Increase Furnace Residence Time: A trial with an increased residence time in the furnace was recommended. A longer period at high temperatures can help dissolve or alter the shape of MnS stringers, leading to a cleaner and more uniform microstructure
• Optimize Sulfur Content: To directly address the formation of inclusions, it was recommended to tighten the target for sulfur content to a level below 0.010%. This would reduce the overall volume of MnS stringers.
• Explore Microalloying for Grain Refinement: As a forward-looking improvement, evaluating the addition of microalloying elements like vanadium (V) or niobium (Nb) was suggested to enhance yield strength through improved grain structure.

Key Skills & Tools

• Failure Analysis & Root Cause Identification
• Microstructural Analysis (Optical Microscopy)
• Inclusion Characterization (MnS Stringers)
• Spectral Chemical Analysis
• Mechanical Property Testing
• Process & Chemistry Specification Review
